Ensuring Hygiene and Safety in Food Processing.
Designed for heavy load in harsh environments under tough conditions
Hygienic certified adjustable feet with floor lock holes can be applied with rubber pad for vibration reduction and anti-slip properties
Our hygienic certified adjustable feet with floor lock holes are provided with FDA certificate (FDA CFR 21 177 2600) with unique batch ID number for food safety traceability

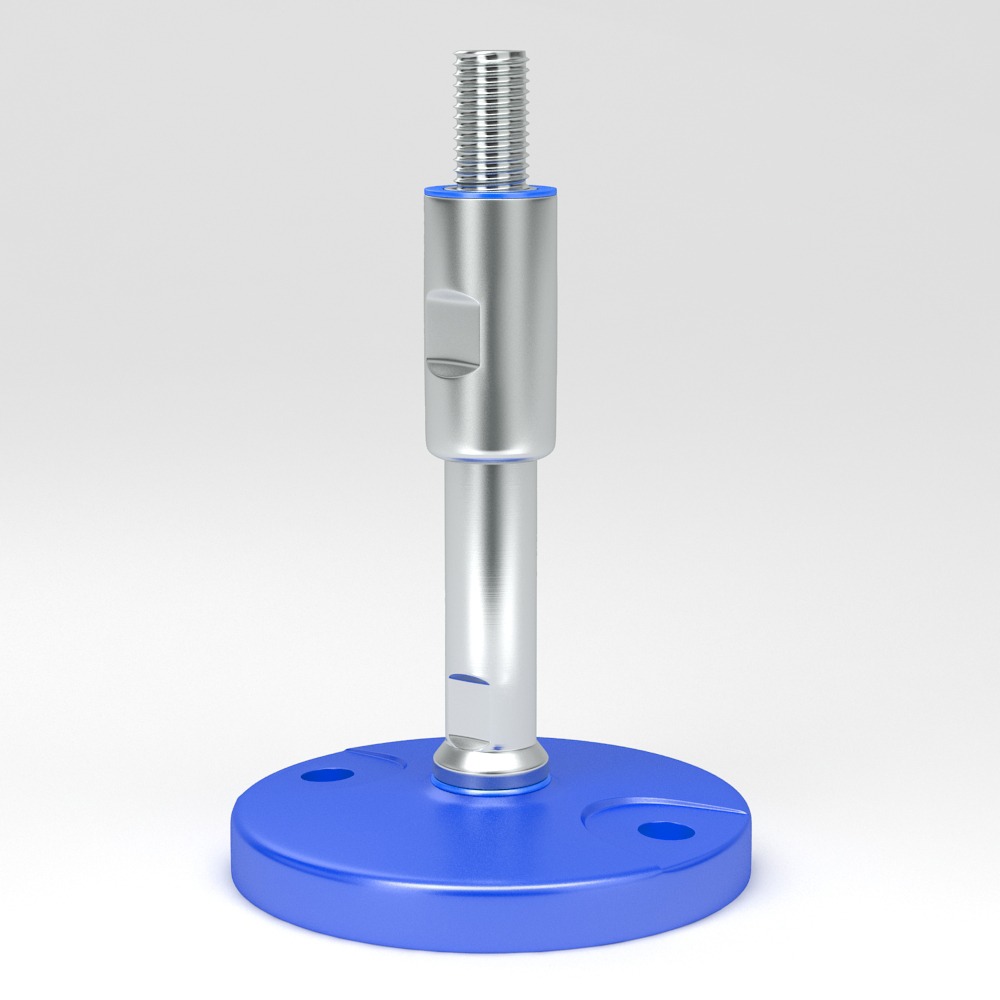

Adjustable feet in sealed hygienic design features and advantages
The spindles are smooth at the end towards the base and the threads are protected by a sleeve to ensure easy cleaning.
The sleeve also functions as a nut.
The spindle and base are sealed with silicone sealing.
The sleeve is sealed with silicone sealing to the smooth end of the spindle and is sealed to the mounting plate with silicone sealing
The base can be fitted with a FDA approved rubber pad for vibration reduction
Sealed hygienic certified adjustable feet with floor lock holes can cope with up to 10 degree slopes on floors and equipment.
Adjustable feet in sealed hygienic design materials
Sealed hygienic certified adjustable feet with floor lock holes rubber pad with FDA Certificate according to FDA CFR 21 177 2600.
Base plate material description:
Food grade composite material
Spindle material description:
Stainless steel A2-70 or A4-70
Rubber base material description:
NBR Rubber (Nitrile rubber CAS no. 9005-98-5)
FDA Certificate according to FDA CFR 21 177 2600
All materials are highly resistant to chemicals and commonly applied cleaning agents and to resistant oils and fats.
Adjustable feet in sealed hygienic design sizes
Try our certified hygienic feet product selector
Sealed hygienic certified adjustable feet base with floor lock holes are available in a wide range, giving the optimal flexibility and choice.
| Base Type | Base Diameter D |
|---|---|
| HAF 79 | 78 mm |
| HAF 99 | 98 mm |
| HAF 119 | 118 mm |
| HAF 139 | 138 mm |
| HAF 159 | 158 mm |
| HAF 179 | 178 mm |
| HAF 199 | 198 mm |
| HAF 249 | 248 mm |
| HAF 299 | 298 mm |
For other base diameter D, please contact us
Nominal load depend on the spindle threads
For rubber pad, suffix “R” is added to numbers. ex.: HAF79-3A-M16-L140-R
Sealed hygienic certified adjustable feet with floor lock holes spindles are available in a wide range, giving the optimal flexibility and choice.
| SHAF Spindle and sleeve diameter | ||||||
| M16 | M20 | M24 | M30 | M36 | M42 | M48 |

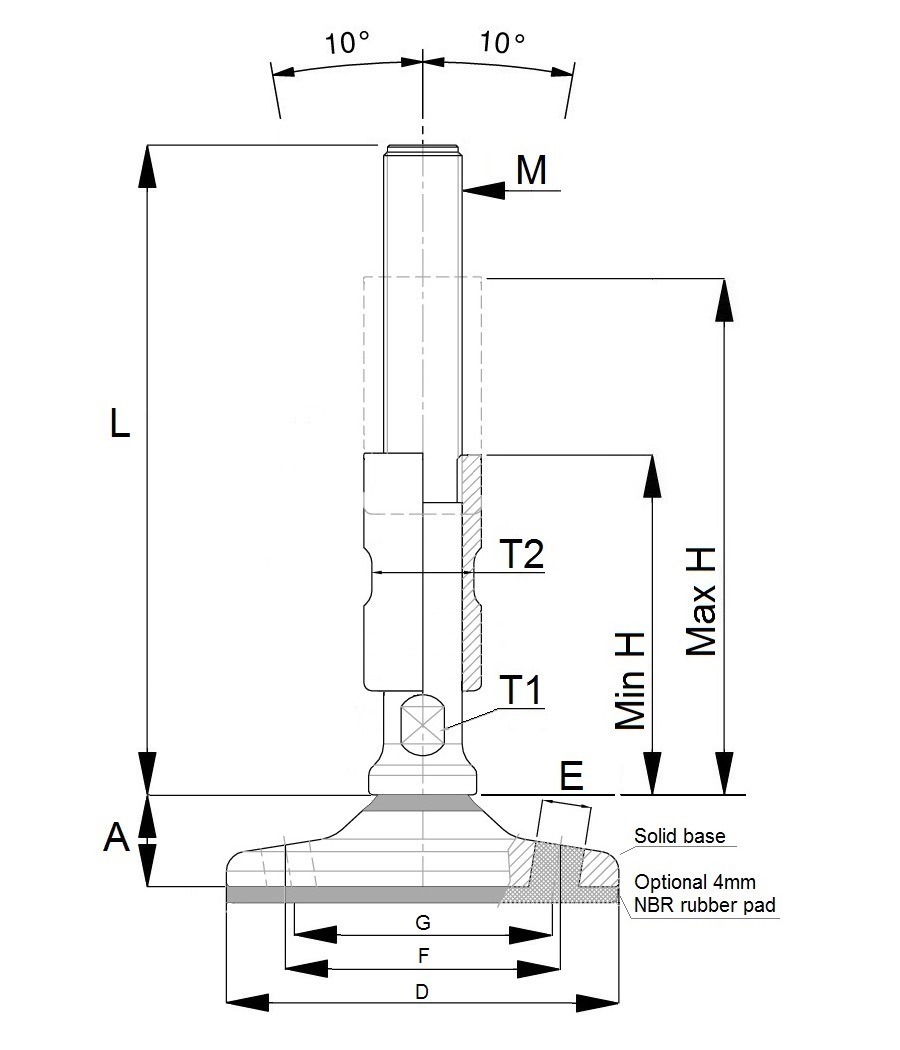

Sealed hygienic adjustable feet spindle length and adjustment height
| SHAF Spindle length (L) and Sleeve length (H) | Adjustment height | |||||
| L=140 mm H=55 mm | Min 80 mm to Max 120 mm | |||||
| L=180 mm H=75 mm | Min 100 mm to Max 160 mm | |||||
| L=220 mm H=95 mm | Min 120 mm to Max 200 mm | |||||
| L=260 mm H=115 mm | Min 140 mm to Max 240 mm | |||||
| L=300 mm H=125 mm | Min 180 mm to Max 280 mm | |||||
For other threaded spindle length (L), please contact us
Threads in inch is available upon request
The thread can also be customized according to specific request, ex trapezoid thread etc.
Adjustable feet in sealed hygienic design delivery option
For large orders we offer to supply the base and spindles separate
The advantage is flexibility for the costumer which are using many different sizes of spindles.
